3D Image Processing Functions

  • Image Reslicing

  • Image Slice Alignment

  • Image Registration and Fusion

  • Crop Image Using Regions of Intest (ROI)

  • Crop Image  Slices from a Scanned FIlm

  • Image Rotate: You can use this command to rotate an image at a user defined angle

  • Reconstruction: 3D-DOCTOR uses a back-projection algorithm to reconstruct a volume image from a series of images taken at regular angle intervals.

  • Negate: You can use this command to reverse the image pixel intensity values.  This command is used when am image is scanned with reverse polarity.

  • Despeckle: This command is used to remove white and black noise pixels from a monochrome or binary image.  Other image types should be converted to binary or monochrome first if you want to use the despeckle command

  • Smooth: You can smooth your image using either the Median Filter or Average Filter options.

  • Remove Background: This command employs a specially developed image filter that automatically removes dark image background from either 8-bit or 16-bit grayscale images.

  • Edge Detection: You can create an edge-enhanced image from your original image using either the Sobel Edge detector or the Gradient Magnitude detector.

  • Image/Conversion: You can convert your images between a variety of image types, including 24-bit RGB image, 8-bit palette color image, 16-bit and 8-bit grayscale image, and 1-bit bi-level image.

  • Image/Mosaic: This command is used to create an image mosaic from multiple images or images with multiple planes.  Images with overlapped borders are correlated to create seamless image mosaic.

Image ReSlicing

  • Image Reslice: You can reslice an image that has uneven spacing/thickness between slices to create an image with evenly spaced slices for more accurate 3D rendering and analysis.
  • Reslice Volume: You can reslice a CT/MRI image along an arbitrary axis in 3D space. Simply define the 3D angle and a new image is created.

Image Registration and Fusion

  • Registration: Register an image against another image to make the two images in the same orientation and dimension.  This can be done by defining 4 or more control points among all image slices. You can then compare them pixel by pixel or fuse them together to create a new fusion image. Analysis of multi-modality images is now an easy thing to do with 3D-DOCTOR.
  • Image Fusion/Focus Fusion: You can take a group of microscopy images acquired at different focus and use 3D-DOCTOR's Focus Fusion function to stitch them all together to create a single image with full focus everywhere in the image.

CRop Image Using Regions of Interest (ROI)

Image slices can be cropped with user-defined region of interest (ROI) to remove unwanted portions and clean printed text on a film image.

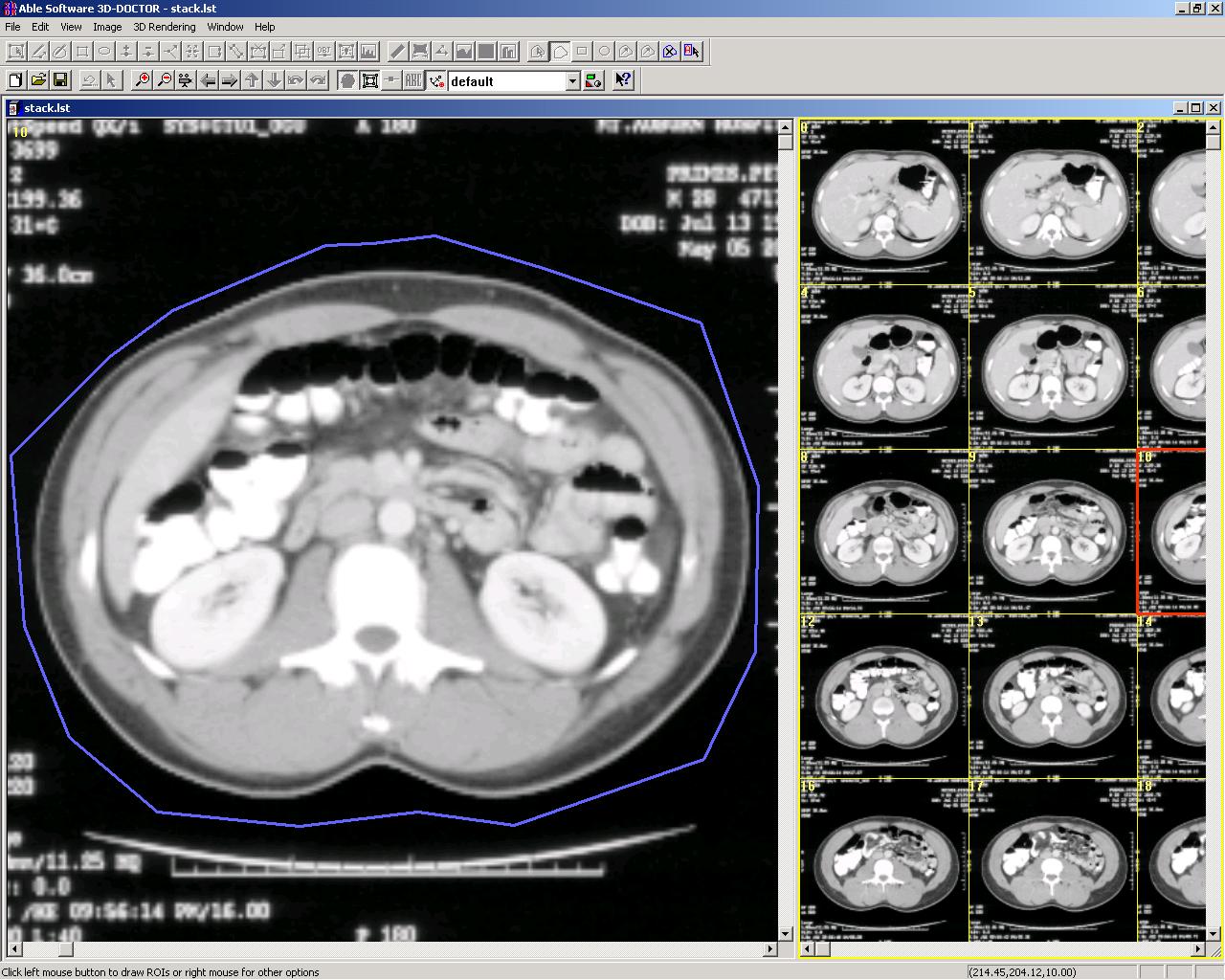

Original Image and a region of interest (ROI) defined (blue polygon):

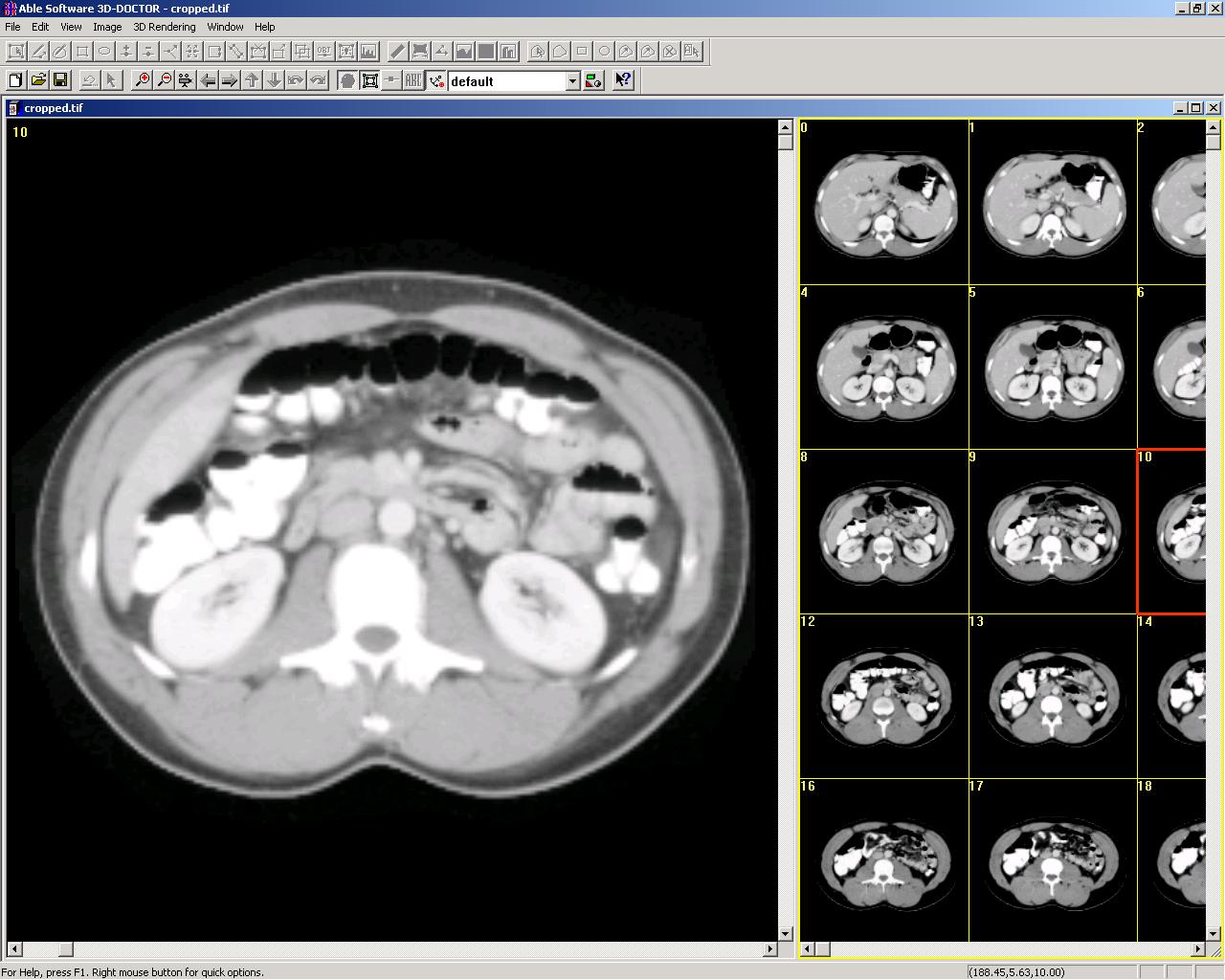

Cropped image:

Crop Scanned Films:

Scanned films are cropped easily using 3D-DOCTOR's template-based "Crop Film" command.

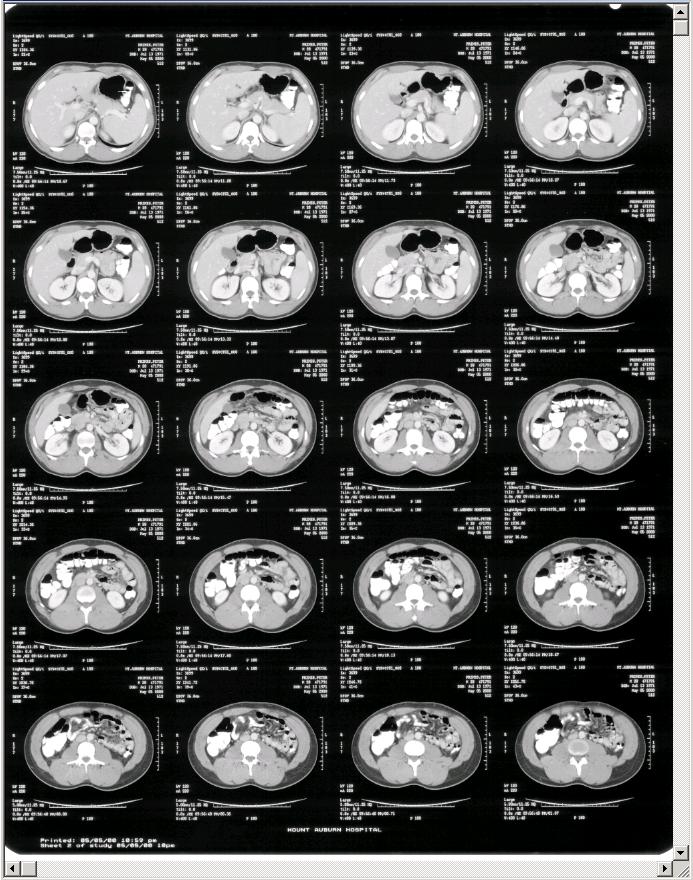

Step 1. Scan your film, open it in 3D-DOCTOR.

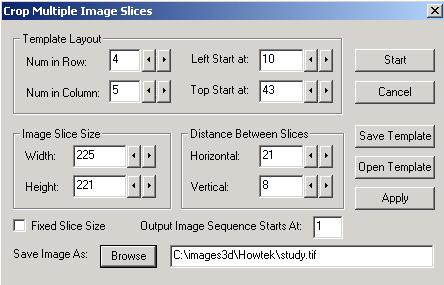

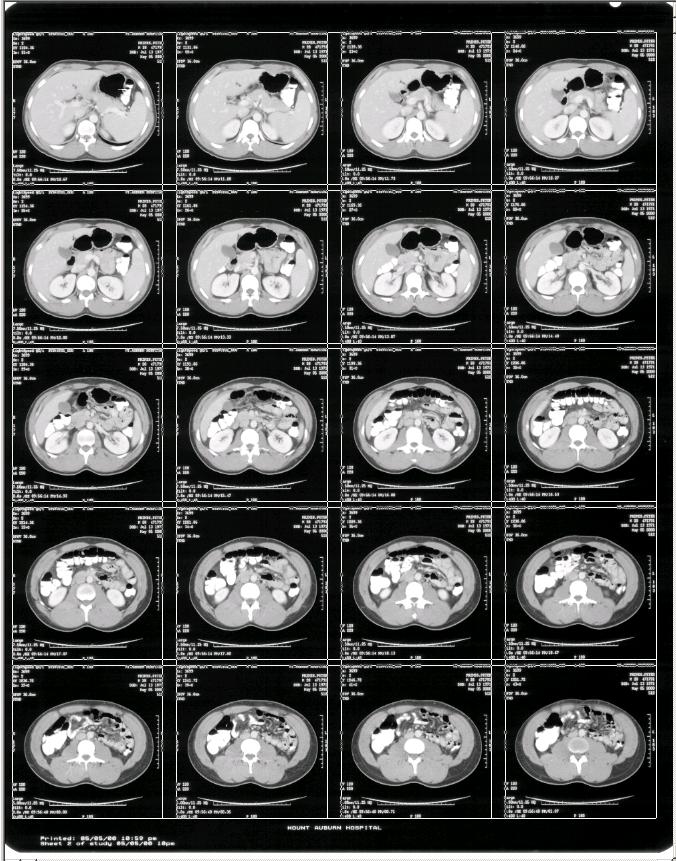

Step 2. Use the "Crop Film" command and adjust the template. You can use a predefined template as well.

Step 3. Apply the template to crop the slices and save each slice into separate image file.

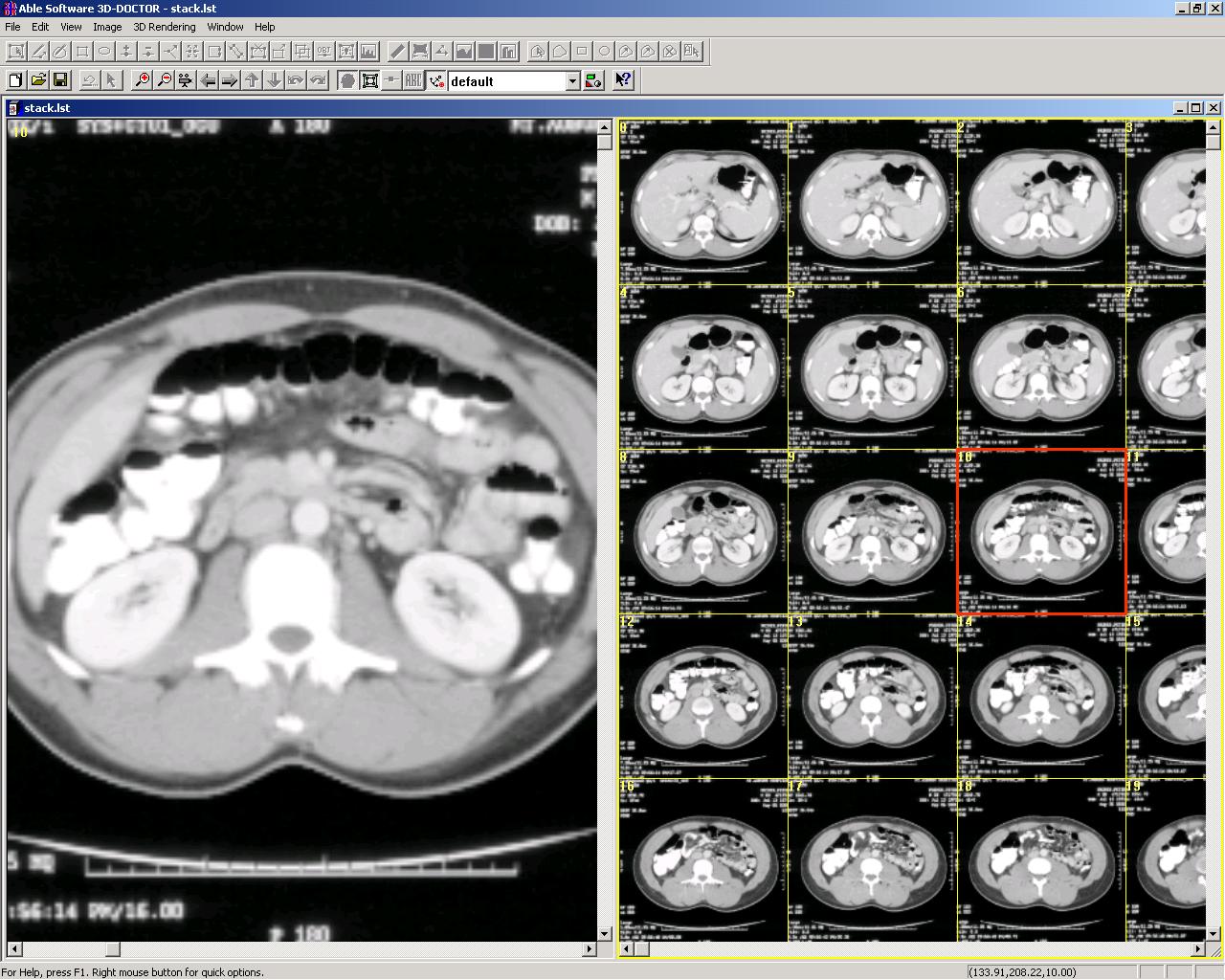

Step 4. Slices are put together in a stack using the "New Stack" command and ready for 3D modeling and visualization.

Image Classification

The classification function can group voxels of similar colors in either a grayscale image or a color image together for segmentation and other processing.

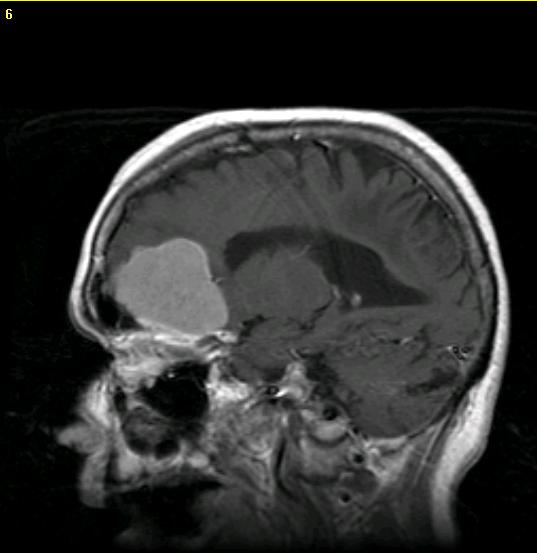

Original MRI image:

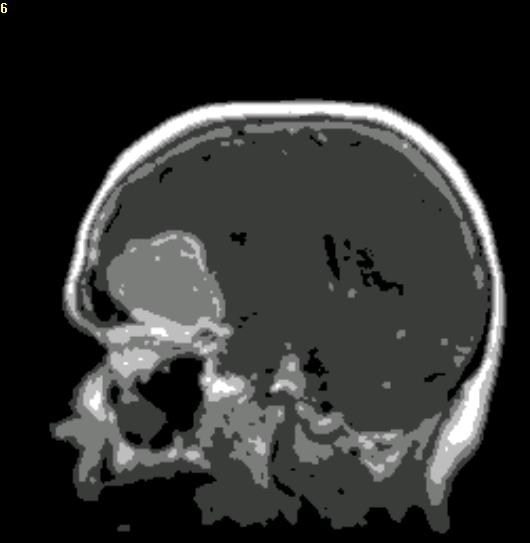

Classified into 5 groups using the Classification function:
